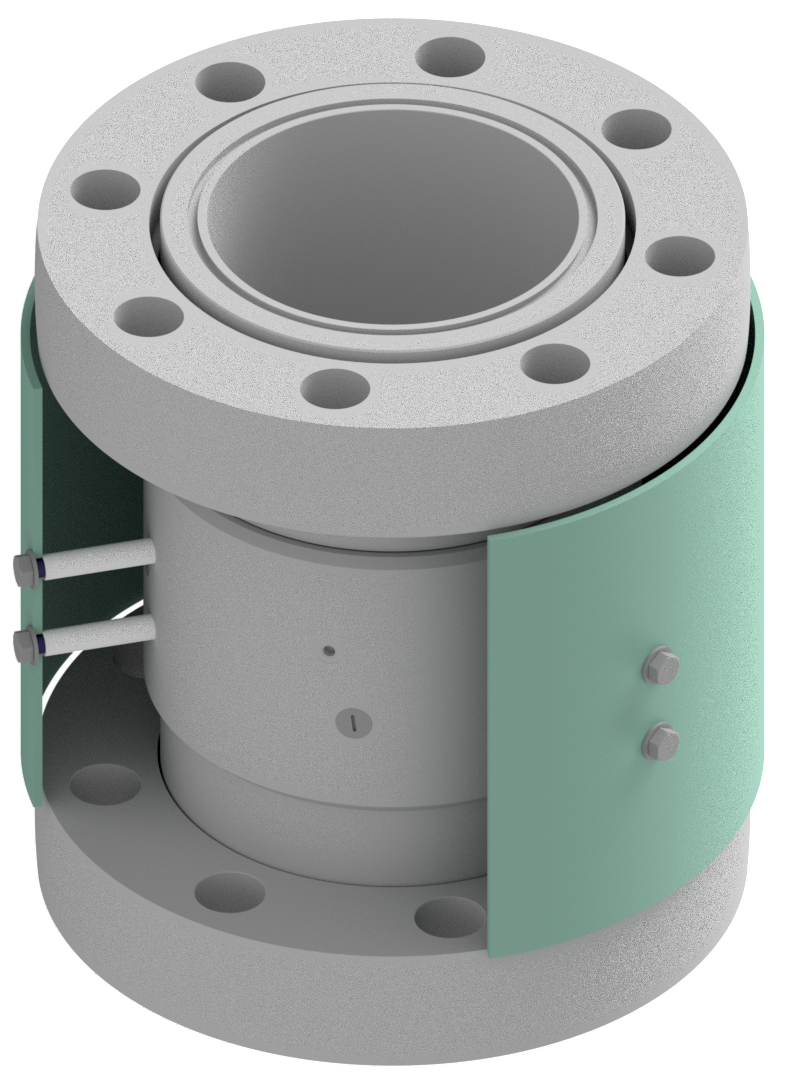

Compensator Hose Swivels

The Compensator Hose Swivels are designed for medium pressure applications for various compensator systems requiring high fluid flow capacity.

The swivel is manufactured in high strength stainless steel. Seal rings have high temperature and high pressure capacity, and very low friction. Together with hardened raceways this gives very low rotation resistance at rated working pressure, effectively enabling the main purpose of the swivels; to relive torsional loads in hoses and fixed end connections.

The swivels have type approval from DNV and ABS

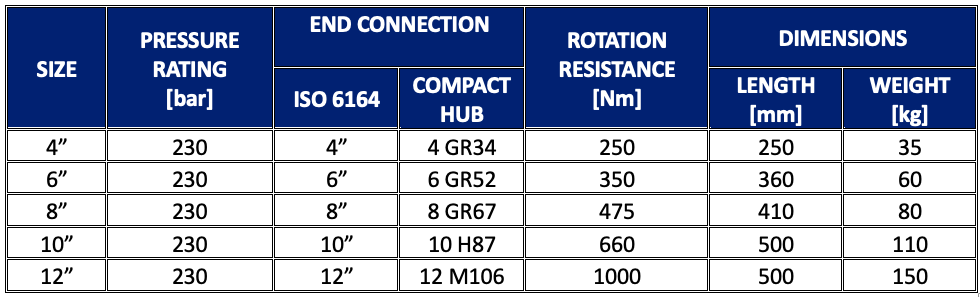

Notes

  1. Swivels are supplied with ring groves for ISO 6164 slip on flanges or with compact hubs

  2. Temperature ratings are -20oC to+121oC

  3. The swivels are available in a wide range of materials as 17.4PH, AISI 4130, AISI 4140 or AISI 316, etc.

  4. Swivels fabricated in carbon steel have Inconel CRA on sealing surfaces

  5. Dimensions and weights are indicative

  6. Rotation resistance is given at rated working pressure, there is no stick-slip effect
