BOP Control Hose Swivels API16D

The BOP Control Hose swivels are designed to relive torsion in the BOP control hoses and unscrewing of fittings, incurred during moving of the BOP between well slots.

The swivels are manufactured in high strength stainless steel. Seal rings have high temperature and high pressure capacity, and very low friction. Together with hardened raceways this gives very low rotation resistance at rated working pressure, effectively enabling the main purpose of the swivels; to relive torsional loads in the hoses and fixed end connections.

The swivels have type approval from DNV.

BOP Control Hose Swivels API16D

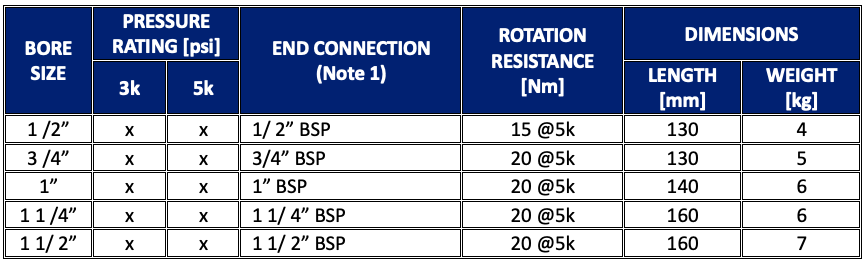

A technical specification table for different bore sizes, listing pressure ratings in psi for 3k and 5k, end connection types, rotation resistance in Nm, dimensions in millimeters including length, and weight in kilograms.

Notes

  1. Swivels may be supplied with BSP Male / Female, NPT male/female, SAE3000, SAE6000 or ISO 6164 connections.

  2. Temperature rating is -20oC to+121oC

  3. The swivels are normally supplied in stainless steel 17.4PH, AISI 316L and other materials

  4. Dimensions and weights are indicative

  5. Rotation resistance is given at rated working pressure, there is no stick-slip effect
